Reciprocating Carving Hand Piece

Name: Reciprocating Carving Hand Piece
Brand: FOREDOM ELECTRIC CO
SKU: 90118
Price: 76.95 USD
Availability: OutOfStock

$76.95 USD Temporarily out of stock

Shipping calculated at checkout.

SKU

90118

Product variants

Our Price

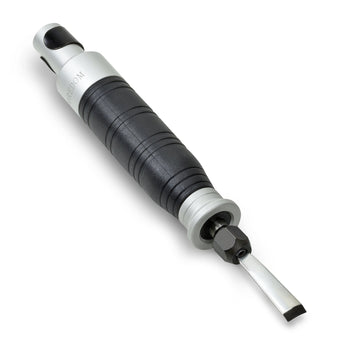

Reciprocating Carving Hand Piece

This reciprocating chisel handpiece is for carving in all types of wood, plastic, plaster and soft carving stone. It connects to a key tip quick disconnect flexible shaft machine like our 85288. Simply pull the hand piece off of the cable (with the motor unplugged) and insert this hand piece in its place. The handle converts the rotary action of the driven cable into reciprocating ‘hammer’ type handpiece that requires a light pressure to start the hammering chisel action. It has a stroke length of 1/8? (3.2mm). The textured plastic barrel & tapered aluminum front end provide comfort and zero hammering feedback into the user’s hand.

More Product Details

For optimum performance use between 1,000 – 8,000 RPM.

TIP: We also recommend using a dial speed control, in place of a foot pedal, to run steady within the recommended lower end of the speed range of our 85288. See our 88343 Table Top Speed Control.

Handpiece Specifications:

6″ long, 1″ diameter

4.6 oz, (6.65 oz packaged weight)

Includes 6 chisels that have 18mm long tangs and 55mm and

75mm overall lengths – from cutting edge to end of tang. and includes: 3/8” straight, 11/32 45° skew, ¼” V gouge and 3/8” wide #3, #7 and 3/16” #10 U gouges

Also includes lube, collet wrench and instructions.

Must only be used in a forward motor direction only such as our 85288 Flex Shaft Machine the normally spins the hand piece chuck counter-clockwise.

Instructions

Shipping & Returns

We hope you will be completely satisfied with your order...but, if an item does not meet your expectations, you may return it in as-new condition within 30 days of delivery for a replacement, exchange or refund of the purchase price.

Estimate shipping

Country

Zip code

You may want to know...

Brand: Foredom

Item Weight: 0.6 lb

Item Dimensions: 10 x 2 x 2 inches

List Price: $99.95

Manufacturer ETA:

Most orders are shipped complete within 2 business days; however, if we must ship a partial order due to an out-of-stock situation, merchandise will not be charged to your credit card until shipment is made.
