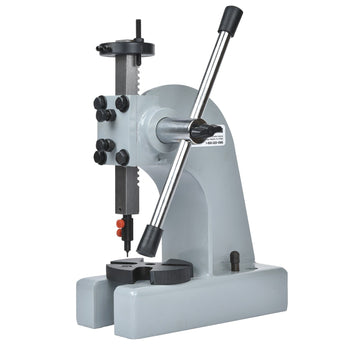

MicroLux® Half-Ton Arbor Press

$119.95 USD Out of stock
Shipping calculated at checkout.

SKU

87402
Our Price

Beyond Your Everyday Arbor Press!

  • Generates up to 1000 lbs of force
  • Punch Set Not Included
  • Stop for the ram included
  • Off-center pressing capabilities to land-the-ram repeatedly
  • Onboard storage of tooling


WARNING: This product can expose you to chemicals, including Chromium (Hexavalent Compounds) which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, go to: www.p65warnings.ca.gov
More Product Details

It's a monster! Engineered to incorporate unique features and increased versatility right out-of-the-box, this heavy duty Arbor Press gets the job done like no other. There are other models on the market, but ours is the first to include a specially designed locking work table that not only rotates 360 degrees, but can be positioned up to 3/32" from center (3/16" total travel) anywhere within the X and Y planes. This makes "jigging" of the press for special applications easier than ever before, along with providing the precision detail adjustment needed to "land-the-ram" exactly and repeatedly when your work calls for off-center pressing. Other innovations include on-board tooling storage, and a special adapter designed to hold our highly useful punch and die sets, which are available separately.Specifications



Overall dimensions: 11" x 9" x 4"

 Weight approximately 17 pounds

 Maximum opening under ram: 115 mm (4-1/2")

 Throat depth: 80 mm (3-9/64")

 Four position worktable is 95 mm (3-3/4") diameter with one position having a 7/16" - 20 threaded hole for installation of hole punch dies

 The reversible ram is 19 mm (3/4") square with a 3/8" bore on one end for mounting punches

 Punch parts, press gears and pinions, form parts, punch holes, manipulate components, flatten parts, create contours, create simulated rivets, emboss metals and other materials with provided tooling; you may also create optional attachments using Micro-Mark #86206 One-To-One / Express Mold Rubber and cast those parts with #82659 CR900 High Strength Resin, then attach them to the ram for customized applications.



Instructions
Shipping & Returns

We hope you will be completely satisfied with your order...but, if an item does not meet your expectations, you may return it in as-new condition within 30 days of delivery for a replacement, exchange or refund of the purchase price.

You may want to know...


Brand: MicroLux

Item Weight: 17.2 lb

Item Dimensions: 12 x 11 x 5 inches

List Price: $140

Manufacturer ETA:

Most orders are shipped complete within 2 business days; however, if we must ship a partial order due to an out-of-stock situation, merchandise will not be charged to your credit card until shipment is made.

We hope you will be completely satisfied with your order...but, if an item does not meet your expectations, you may return it in as-new condition within 30 days of delivery for a replacement, exchange or refund of the purchase price.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Chris Counterman
Great press

Works very well. Would recommend this to anybody.

j
jonathan helig
Nice little arbor press

This is a very handy arbor press for small hobby type items. The adjustable depth stop and 3/8" hole at the bottom end of the ram for tool bits is very useful.

T
Ted Dreger
Very nice press.

Very pleased with this arbor press. Set up was a breeze and I modified mine with a replacement shaft from The Supply Guy on Etsy so that it can accept square or round tooling. (You could also bore the other end of the shaft provided if you have the tools)

Makes checking impressions easy and makes it a lot easier to get uniform results by allowing you to lower and re-strike your piece.
